Onnicar S.r.l. - Conversions for commercial vehicles

i tuttoinlega

Dropside body "W"

Payload, versatility and longevity at the top of the category.


Product description

Frame entirely made of structural aluminum alloy welded and painted with light gray polyester powder.

Loading surface built with phenolic plywood panels with non-slip (standard) or smooth visible surface (on request).

Front panel solidly welded to the structure to further improve its strength.

Lateral and rear side-panels made with customized ONNICAR aluminum alloy profile, silver-colored anodized, standard height 400 mm, openable at 180 °, with red upper plastic profile, certified to contain loads according to the UNI EN 12642 Code XL standard.

Side-panels lockings systems in anodized aluminum, ergonomic, designed and built to withstand intense cycles of use.

Handles easy to operate with reduced overall dimensions in their open position.

Floor anchoring eyelets certified according to the UNI EN 12640 standard.

Anchoring eyelets for load securing positioned on the front side.

Access step on the rear side.

Rear mudguards with mudflaps in thermoplastic material, side reflectors and clearance lights (where necessary) complete the product.

Thanks to materials and treatments used, ONNICAR "i tuttoinlega" conversion excludes the problem of rust throughout its entire life.

Accessories available

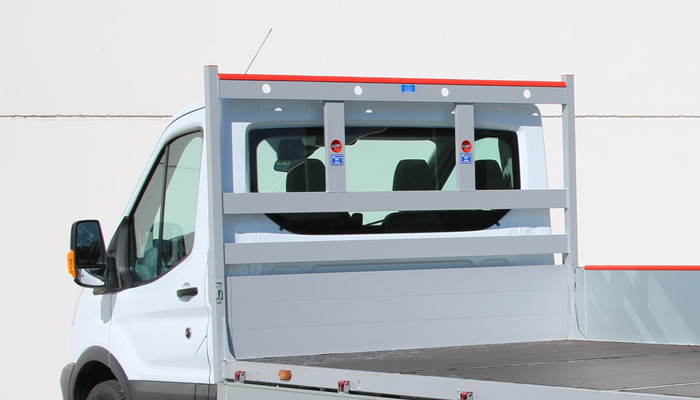

Cabin protection in aluminum with ladder-rack

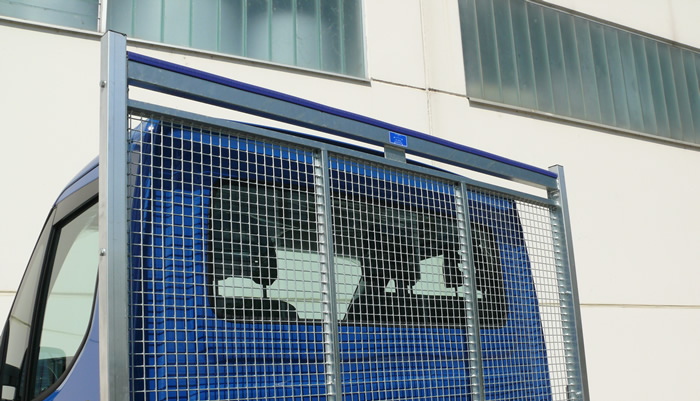

Cabin protection with galvanised steel grid and ladder-rack

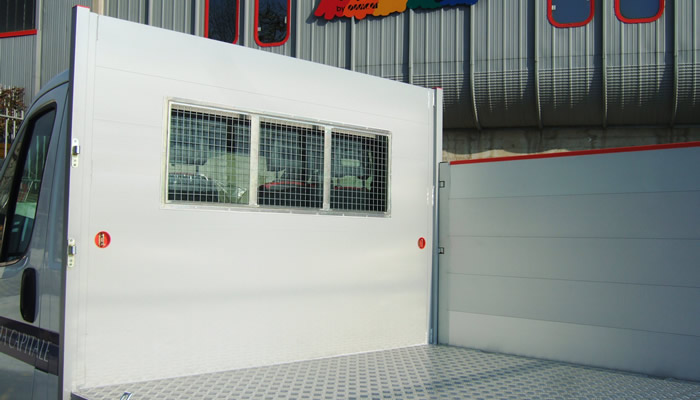

Cabin protection in full aluminium

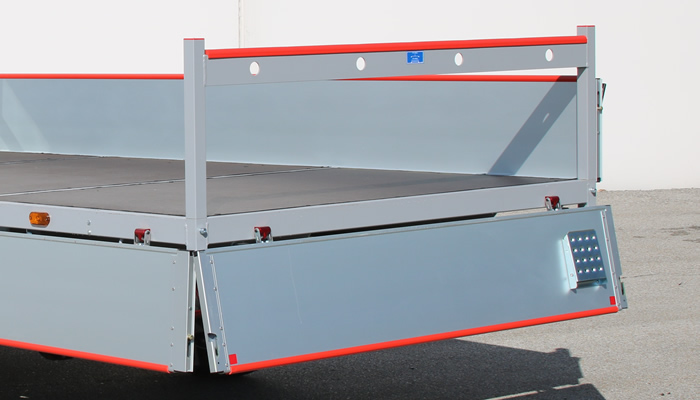

Removable rear ladder-rack in aluminium
Toolbox in various dimensions

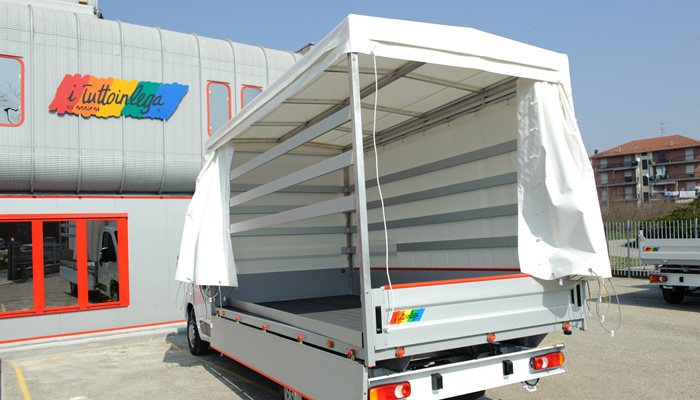

Removable curtainsider structure with tarpaulin

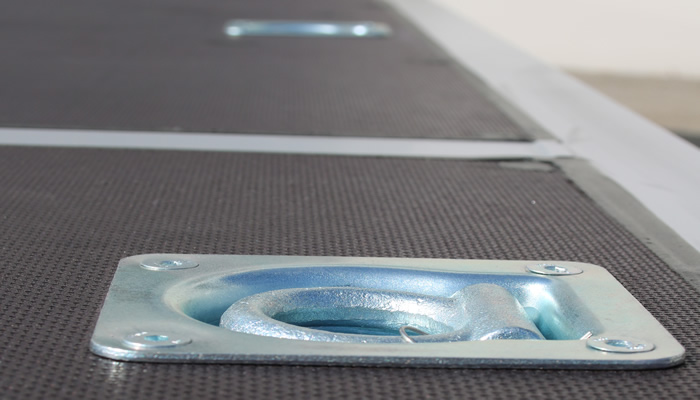

Anchoring devices and fixing systems
Aluminium overside panels
